| Product technical parameters |
|

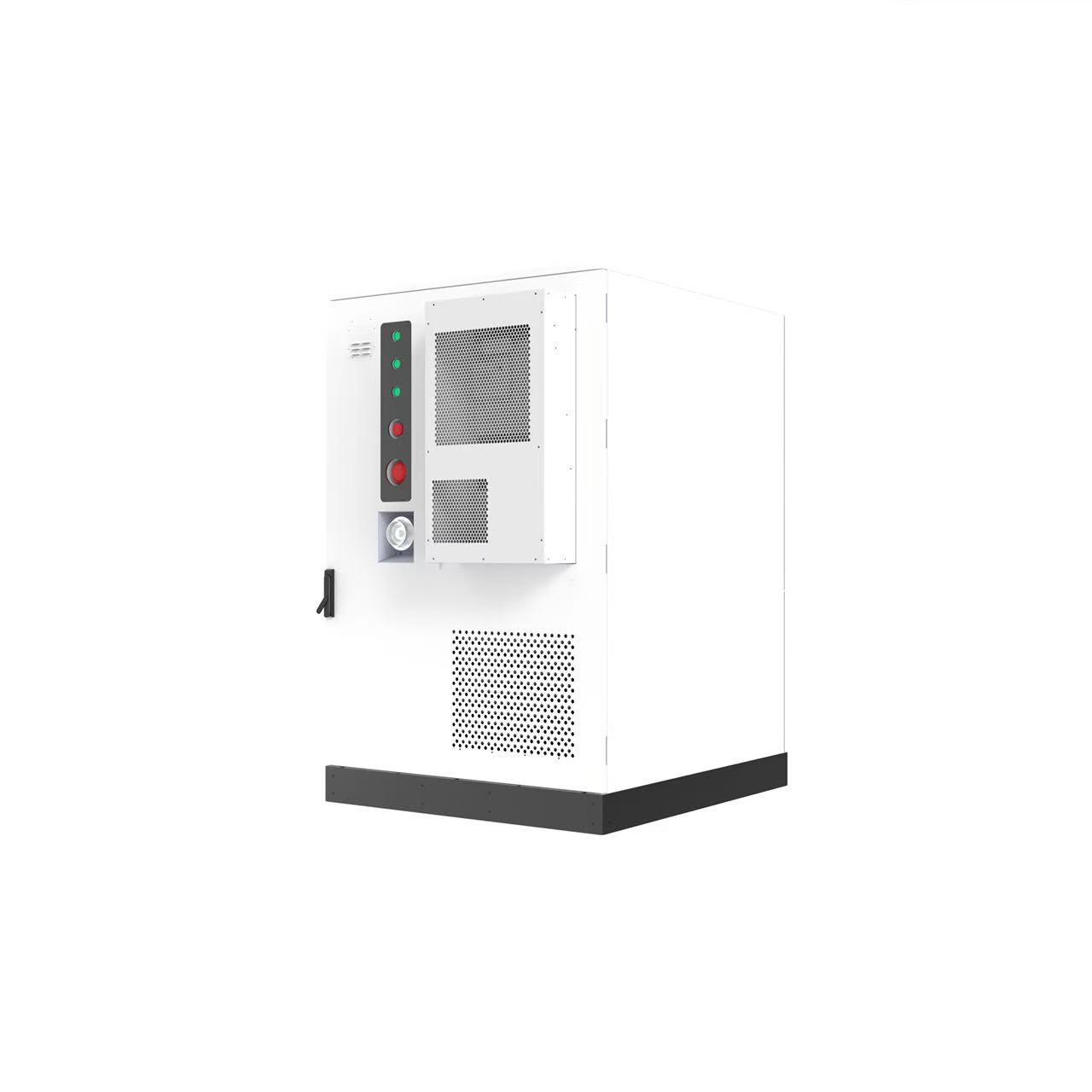

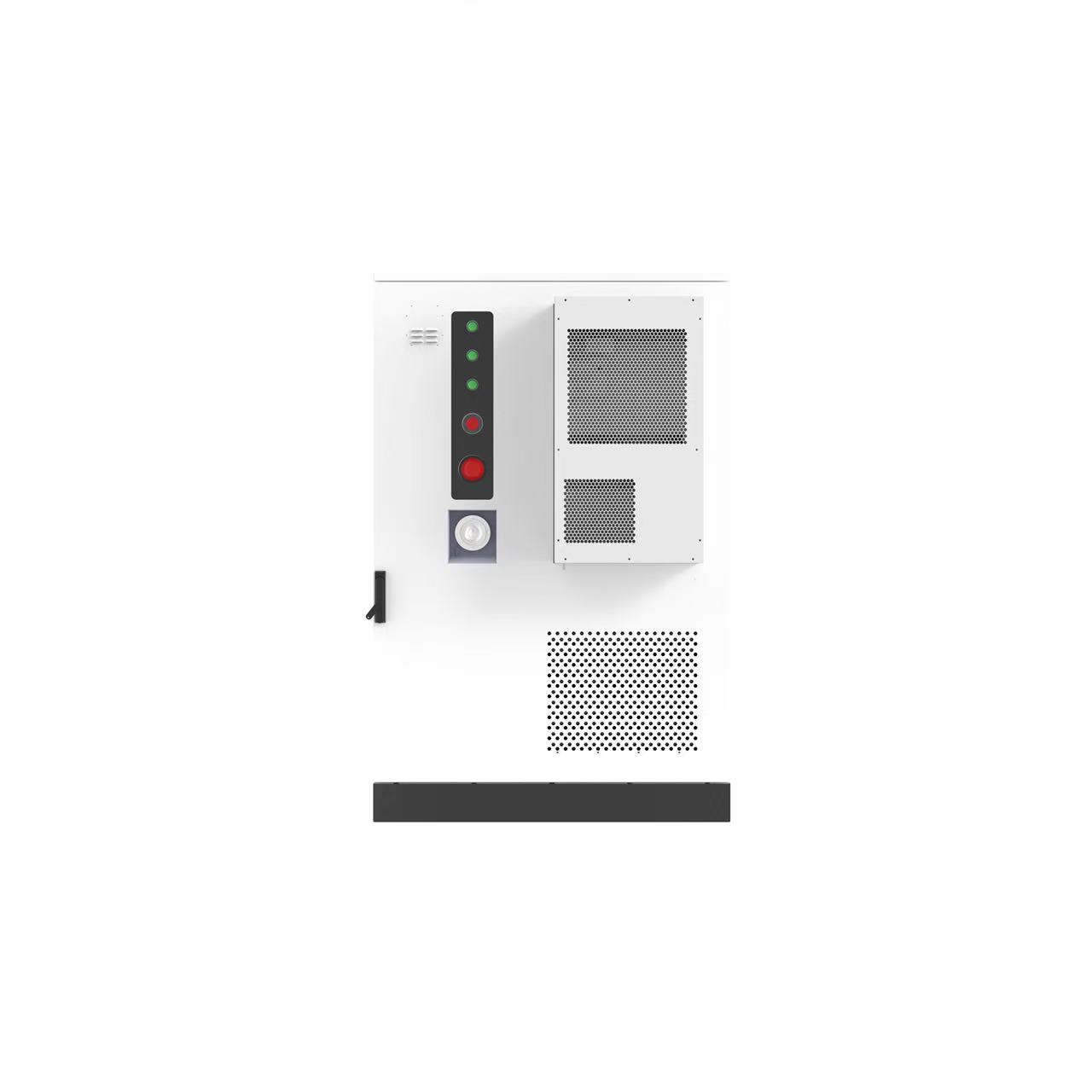

| Product model | JWE-V2BHW-48kW/96kwh |
| Energy storage parameters | Rated energy | 96kwh |
| Rated capacity | 280Ah |
| Rated voltage | 352V DC |
| Battery voltage range | 308--398.2V DC |
| Rated charge/discharge current | 140A |
| Maximum charge/discharge current | 160A |
| AC parameters (grid side) | Rated power | 48kW |
| Maximum output power | 53kW |
| Rated grid voltage | 380Vac ±15% |
| Rated grid frequency | 50/60Hz |
| AC parameters (off-grid) | Rated output voltage | 380vac ±15% |
| Rated output power | 48kw |
| Rated output frequency | 50/60Hz |
| Maximum output power | 53kW |
| System parameters | Maximum system charge/discharge efficiency | 86% |
| Input type | Three-phase five-wire system |
| Grid monitoring | Yes |
| Weight | 1250kg |
| Protection | DC input | DC contactor + fuse |
| Overvoltage protection |
|
| Fire protection system |
|
| Entry method | AC entry - front door bottom entry and exit |
| Communication method | RS485, Ethernet, 4G |
| Environmental parameters | Allowable environmental temperature | -20℃--+55℃ (power reduced at 50℃) |
| Allowable environmental humidity | 5--95%RH, no condensation |
| Maximum working altitude | 2000m, reduced at higher altitudes |
| Protection grade | IP55 |
| Corrosion grade | C3 |
| Cooling method | Intelligent air cooling |
