| Main parameters | |

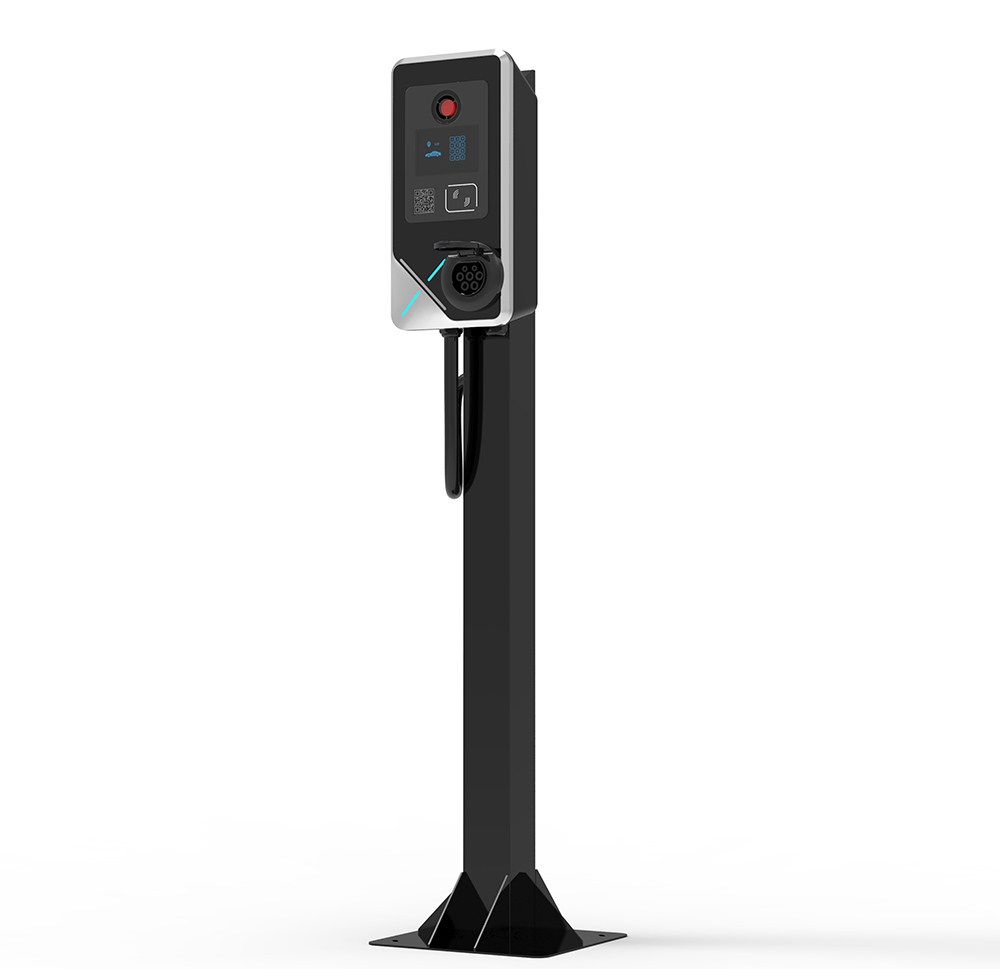

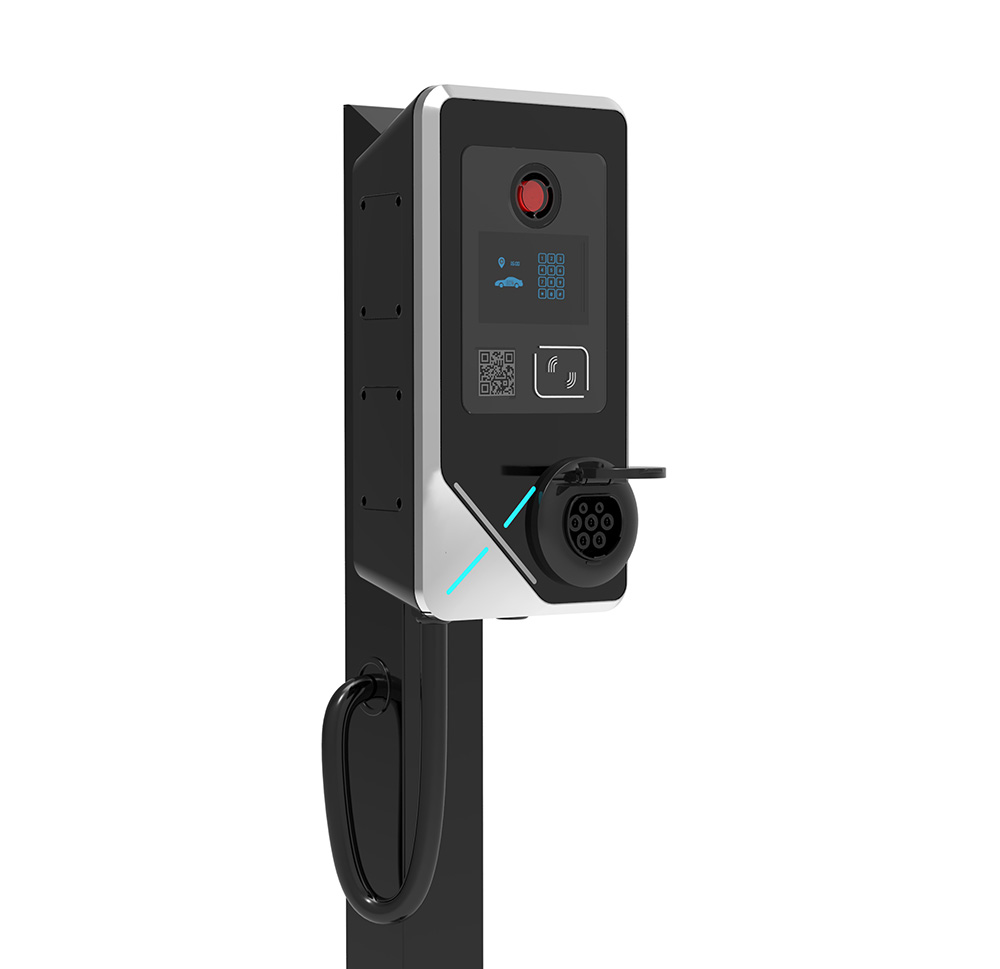

| product name | (IEC)JWF-1P-7K AC charging Pile |
| Product number | JWF-1P-7K |
| Display | 4.3-inch LCD color display |
| Credit card function | Support M1 card |
| Measurement | Chip measurement/meter measurement |
| charging method | Credit card, APP, background |
| Host size | 350*220* 110 ( L*W*H ) |
| Indicator light | LED indicator, green, blue, red |
| Exterior color | Silver black |
| Charging interface | IEC 2 type charging pile power socket |
| communication method | Ethernet, 4G |
| Background agreement | OCPP1.6 |
| Installation method | Wall-mounted |
| equipment weight | <7kg |
| Input voltage | AC220V 50Hz |
| Maximum power | 7kW |
| The output voltage | 220V |
| Output current | 32A |
| Applicable scene | Indoor / outdoor |
| Operating temperature | -30℃ ~ +55℃ |
| Working humidity | 5% ~ 95% without condensation５ |
| Working altitude | <2000m |
| Protection class | IP54 |
| cooling method | Natural cooling |
| Executive Standard | IEC 61851-1:2011,IEC 61851-22:2002,IEC 62196-2 |
| MTBF | 100,000 hours |
| Special protection | Anti-UV design |
| Protective function | Overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, grounding protection, lightning protection, emergency stop protection, leakage protection |
| Other functions | Background monitoring, software upgrade, mobile payment, record export |
